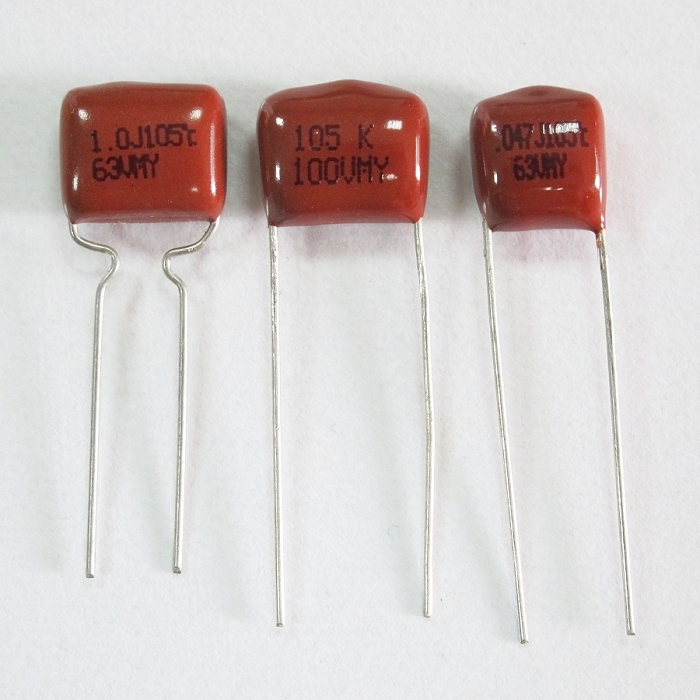

金属化聚乙脂膜电容器
METALLIZED POLYESTER FILM CAPACITOR (MSR)
金属化聚乙脂膜电容器（小型化）
适合使用于SPS、UPS、Monitor、电视、电子安定器等…
MSR TYPE:
| RV | 50/63VDC | 100VDC | 250VDC | 400VDC | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SIZE | W | H | T | P±1 | dø | W | H | T | P±1 | dø | W | H | T | P±1 | dø | W | H | T | P±1 | dø |
| CAP | ||||||||||||||||||||
| 0.01 | 10.5 | 9.0 | 5.0 | 7.5 | 0.6 | 10.5 | 9.0 | 5.0 | 7.5 | 0.6 | 10.5 | 9.0 | 5.0 | 7.5 | 0.6 | 10.5 | 9.0 | 6.0 | 7.5 | 0.6 |
| 0.015 | 10.5 | 9.0 | 5.0 | 7.5 | 0.6 | 10.5 | 9.0 | 5.0 | 7.5 | 0.6 | 10.5 | 9.0 | 5.0 | 7.5 | 0.6 | 10.5 | 9.0 | 6.0 | 7.5 | 0.6 |
| 0.022 | 10.5 | 9.5 | 6.0 | 7.5 | 0.6 | 10.5 | 9.5 | 6.0 | 7.5 | 0.6 | 10.5 | 9.5 | 6.0 | 7.5 | 0.6 | 10.5 | 9.0 | 6.0 | 7.5 | 0.6 |
| 0.033 | 10.5 | 9.5 | 6.0 | 7.5 | 0.6 | 10.5 | 9.5 | 6.0 | 7.5 | 0.6 | 10.5 | 9.5 | 6.0 | 7.5 | 0.6 | 10.5 | 9.0 | 6.0 | 7.5 | 0.6 |
| 0.047 | 10.5 | 9.5 | 6.0 | 7.5 | 0.6 | 10.5 | 9.5 | 6.0 | 7.5 | 0.6 | 10.5 | 9.5 | 6.0 | 7.5 | 0.6 | |||||
| 0.068 | 10.5 | 9.5 | 6.0 | 7.5 | 0.6 | 10.5 | 9.5 | 6.0 | 7.5 | 0.6 | 10.5 | 9.5 | 6.0 | 7.5 | 0.6 | |||||
| 0.1 | 10.5 | 9.5 | 6.0 | 7.5 | 0.6 | 10.5 | 9.5 | 6.0 | 7.5 | 0.6 | 10.5 | 9.5 | 6.5 | 7.5 | 0.6 | |||||
| 0.15 | 10.5 | 10.5 | 7.0 | 7.5 | 0.6 | 10.5 | 10.5 | 7.0 | 7.5 | 0.6 | 10.5 | 10.0 | 6.5 | 7.5 | 0.6 | |||||
| 0.22 | 10.5 | 10.5 | 7.0 | 7.5 | 0.6 | 10.5 | 10.5 | 7.0 | 7.5 | 0.6 | ||||||||||
| 0.33 | 10.5 | 11.0 | 8.0 | 7.5 | 0.6 | 10.5 | 11.5 | 8.0 | 7.5 | 0.6 | ||||||||||
| 0.47 | 10.5 | 11.5 | 8.0 | 7.5 | 0.6 | 10.5 | 12.5 | 8.0 | 7.5 | 0.6 | ||||||||||
| 0.68 | 13.0 | 11.5 | 7.5 | 10.0 | 0.6 | 13.0 | 12.5 | 8.0 | 10.0 | 0.6 | ||||||||||
| 1.0 | 13.0 | 12.5 | 7.5 | 10.0 | 0.6 | 13.0 | 13.0 | 8.0 | 10.0 | 0.6 | ||||||||||
| 1.5 | 18.5 | 14.0 | 8.0 | 15.0 | 0.8 | 19.0 | 14.0 | 8.5 | 15.0 | 0.8 | ||||||||||
1. OPERATING TEMPERATURE : -40 ℃~ +85℃
2. DIELECTRIC STRENGTH : 150% of rated voltage for 1minute at 25℃
3. DISSIPATION FACTOR : 1.0% MAX. at 1KHz, 25℃
4. INSULATION RESISTANCE (IR) :
≧15,000 MΩ ( C≦.33μF )
≧5,000 MΩ*C ( C＞.33μF )
2. DIELECTRIC STRENGTH : 150% of rated voltage for 1minute at 25℃
3. DISSIPATION FACTOR : 1.0% MAX. at 1KHz, 25℃
4. INSULATION RESISTANCE (IR) :
≧15,000 MΩ ( C≦.33μF )
≧5,000 MΩ*C ( C＞.33μF )
Maximum pulse rise time (dv/dt) V/usec
|
P VCD |
7.5 | 10 | 15 |
|---|---|---|---|
| 63 | 5 | 3 | 1.5 |
| 100 | 6 | 6 | 3 |
| 250 | 15 | 11 | 7 |
| 400 | 30 | 20 | 10 |
1. DF值高，高频时DF变化较大不适用于共振及补振电路
2. 耐电压冲击性较佳
3. 采用金属化膜材料，具有自复性
4. 超小型尺寸
5. 可作带状AMMO包装，方便自动插件
2. 耐电压冲击性较佳
3. 采用金属化膜材料，具有自复性
4. 超小型尺寸
5. 可作带状AMMO包装，方便自动插件
