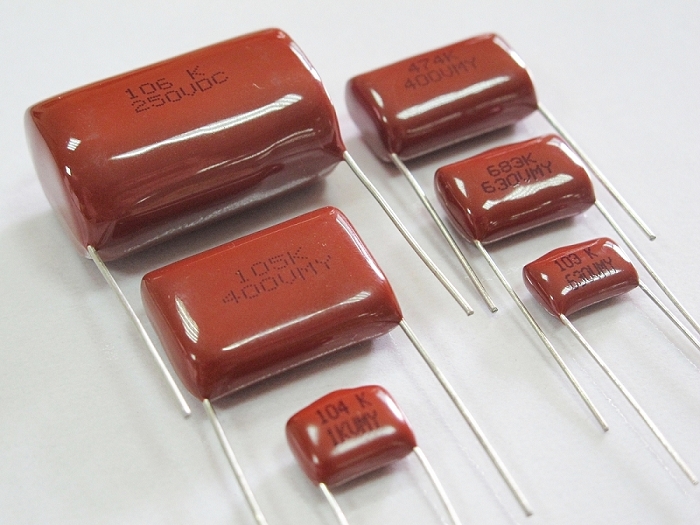

金属化聚乙脂膜电容器
METALLIZED POLYESTER FILM CAPACITOR (MER)
金属化聚乙脂膜电容器
适合使用于SPS、UPS、Monitor、电视、电子安定器等…
MEI TYPE:
| RV | 100VDC | 250VDC | 400VDC | 630VDC | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SIZE | W | H | T | P±1 | dø | W | H | T | P±1 | dø | W | H | T | P±1 | dø | W | H | T | P±1 | dø |
| CAP | ||||||||||||||||||||
| .01 | 13 | 9.5 | 5 | 10 | 0.6 | 13 | 9 | 5 | 10 | 0.6 | 13 | 9 | 6.0 | 10 | 0.6 | 13 | 9.0 | 6 | 10 | 0.6 |
| .015 | 13 | 9.5 | 5 | 10 | 0.6 | 13 | 9 | 5 | 10 | 0.6 | 13 | 9 | 6.0 | 10 | 0.6 | 13 | 9.5 | 6 | 10 | 0.6 |
| .022 | 13 | 9.5 | 5 | 10 | 0.6 | 13 | 9 | 5 | 10 | 0.6 | 13 | 9 | 6.0 | 10 | 0.6 | 13 | 10 | 6.5 | 10 | 0.6 |
| .033 | 13 | 9.5 | 5 | 10 | 0.6 | 13 | 9 | 5 | 10 | 0.6 | 13 | 10 | 6.0 | 10 | 0.6 | 13 | 12 | 8 | 10 | 0.6 |
| .047 | 13 | 9.5 | 5 | 10 | 0.6 | 13 | 9 | 5 | 10 | 0.6 | 13 | 11 | 7.0 | 10 | 0.6 | 18 | 12 | 8 | 15 | 0.6 |
| .068 | 13 | 10 | 5 | 10 | 0.6 | 13 | 9 | 6 | 10 | 0.6 | 13 | 11 | 8.0 | 10 | 0.6 | 18 | 14 | 8 | 15 | 0.6 |
| .1 | 13 | 10 | 6 | 10 | 0.6 | 13 | 10 | 6 | 10 | 0.6 | 18 | 12 | 8.0 | 15 | 0.6 | 18 | 16 | 9 | 15 | 0.8 |
| .15 | 13 | 10 | 6 | 10 | 0.6 | 13 | 10 | 7 | 10 | 0.6 | 18 | 13 | 8.0 | 15 | 0.6 | 24 | 18 | 10 | 20 | 0.8 |
| .22 | 13 | 10.5 | 6 | 10 | 0.6 | 18 | 11 | 6.5 | 15 | 0.6 | 18 | 14 | 8.0 | 15 | 0.8 | 24 | 20 | 11 | 20 | 0.8 |
| .33 | 13 | 10.5 | 6.5 | 10 | 0.6 | 18 | 12 | 7.5 | 15 | 0.6 | 24 | 17 | 9 | 20 | 0.8 | 31.5 | 20 | 12 | 27.5 | 0.8 |
| .47 | 13 | 11.5 | 6.5 | 10 | 0.6 | 18 | 12 | 9 | 15 | 0.8 | 24 | 18 | 12 | 20 | 0.8 | 31.5 | 20 | 13 | 27.5 | 0.8 |
| .68 | 18 | 12 | 7.0 | 15 | 0.6 | 24 | 14 | 9 | 20 | 0.8 | 32 | 18 | 12 | 27.5 | 0.8 | 31.5 | 20 | 15 | 27.5 | 0.8 |
| 1.0 | 18 | 14 | 7.5 | 15 | 0.6 | 24 | 15 | 9.5 | 20 | 0.8 | 32 | 22 | 14 | 27.5 | 0.8 | 37 | 28 | 17 | 32.5 | 0.8 |
| 1.5 | 24 | 14.5 | 8.5 | 20 | 0.8 | 32 | 18 | 10 | 27.5 | 0.8 | 32 | 26 | 16 | 27.5 | 0.8 | 41 | 28 | 18 | 37.5 | 0.8 |
| 2.2 | 24 | 16.5 | 10.5 | 20 | 0.8 | 32 | 18 | 11 | 27.5 | 0.8 | 36 | 26 | 13 | 32.5 | 0.8 | 45 | 31 | 21 | 41.5 | 0.8 |
| 3.3 | 24 | 18 | 11.5 | 20 | 0.8 | 32 | 24 | 15 | 27.5 | 0.8 | 45 | 26 | 16 | 41.5 | 0.8 | |||||
| 4.7 | 32 | 20 | 12 | 27.5 | 0.8 | 32 | 24 | 15 | 27.5 | 0.8 | 45 | 29 | 20 | 41.5 | 0.8 | |||||
| 6.8 | 32 | 22 | 13 | 27.5 | 0.8 | 36 | 26 | 15 | 32.5 | 0.8 | ||||||||||
| 10 | 32 | 25 | 15 | 27.5 | 0.8 | 45 | 28 | 20 | 41.5 | 0.8 | ||||||||||
1. OPERATING TEMPERATURE : -40 ℃~ +85℃
2. DIELECTRIC STRENGTH : 150% of rated voltage for 1minute at 25℃
3. DISSIPATION FACTOR : 1.0% MAX. at 1KHz,25℃
4. INSULATION RESISTANCE :
≧15,000 MΩ ( C≦.33μF )
≧5,000 MΩ*C ( C＞.33μF )
2. DIELECTRIC STRENGTH : 150% of rated voltage for 1minute at 25℃
3. DISSIPATION FACTOR : 1.0% MAX. at 1KHz,25℃
4. INSULATION RESISTANCE :
≧15,000 MΩ ( C≦.33μF )
≧5,000 MΩ*C ( C＞.33μF )
1. DF值高，高频时DF变化较大不适用于共振及补振电路
2. 耐电压冲击性较佳
3. 采用金属化膜材料，具有自复性，体积较小
2. 耐电压冲击性较佳
3. 采用金属化膜材料，具有自复性，体积较小
