聚乙脂膜电容器

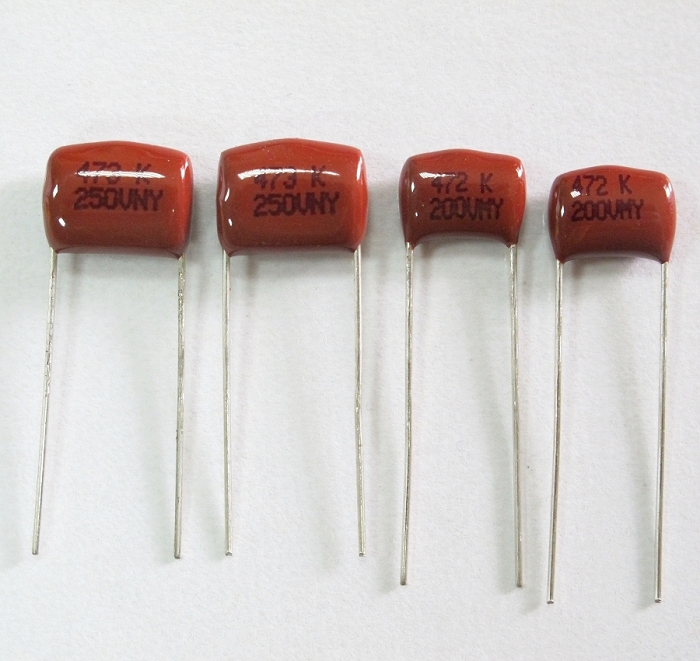

POLYESTER FILM CAPACITOR (PEN)
聚乙脂膜电容器
适合使用于SPS、UPS、Monitor、电视、电子安定器等…
PEN TYPE:
| RV | 50VDC/100VDC | 250VDC | 400VDC | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SIZE | W | H | T | P±1 | W | H | T | P±1 | W | H | T | P±1 |
| uF | ||||||||||||
| .001 | 10.0 | 8.5 | 6.0 | 7.0 | 10.0 | 8.5 | 6.0 | 7.0 | 13.0 | 5.0 | 9.0 | 10.0 |
| .0015 | 10.0 | 8.5 | 6.0 | 7.0 | 10.0 | 8.5 | 6.0 | 7.0 | 13.0 | 5.0 | 9.0 | 10.0 |
| .0022 | 10.0 | 8.5 | 6.0 | 7.0 | 10.0 | 8.5 | 6.0 | 7.0 | 13.0 | 5.5 | 9.0 | 10.0 |
| .0033 | 10.0 | 8.5 | 6.0 | 7.0 | 10.0 | 8.5 | 6.0 | 7.0 | 13.0 | 5.5 | 9.5 | 10.0 |
| .0047 | 10.0 | 8.5 | 6.0 | 7.0 | 10.0 | 9.0 | 6.0 | 7.0 | 13.0 | 6.0 | 10.0 | 10.0 |
| .0068 | 10.0 | 8.5 | 6.0 | 7.0 | 10.0 | 9.0 | 6.0 | 7.0 | 13.0 | 6.5 | 10.5 | 10.0 |
| .01 | 10.0 | 8.5 | 6.0 | 7.0 | 11.0 | 9.0 | 6.0 | 7.0 | 13.0 | 7.0 | 11.0 | 10.0 |
| .015 | 10.0 | 8.5 | 6.0 | 7.0 | 13.5 | 10.0 | 6.0 | 10.0 | 13.0 | 7.5 | 11.5 | 10.0 |
| .022 | 11.0 | 8.5 | 6.0 | 7.0 | 13.5 | 11.0 | 6.0 | 10.0 | 19.0 | 8.0 | 11.5 | 15.0 |
| .033 | 13.5 | 8.5 | 6.0 | 10.0 | 13.5 | 13.0 | 7.0 | 10.0 | 19.0 | 8.5 | 14.0 | 15.0 |
| .047 | 13.5 | 9.0 | 6.0 | 10.0 | 14.0 | 14.0 | 8.0 | 10.0 | 19.0 | 9.5 | 15.5 | 15.0 |
| .068 | 13.5 | 11.0 | 6.5 | 10.0 | 14.0 | 16.0 | 9.5 | 10.0 | 26.0 | 9.0 | 15.5 | 21.0 |
| .1 | 14.0 | 12.5 | 8.0 | 10.0 | 19.0 | 17.0 | 9.5 | 15.0 | 26.0 | 10.5 | 17.5 | 21.0 |
| .15 | 19.0 | 14.0 | 8.0 | 15.0 | 19.0 | 18.0 | 10.0 | 15.0 | ||||
| .22 | 19.0 | 16.0 | 8.5 | 15.0 | 25.0 | 21.0 | 10.5 | 21.0 | ||||
| .33 | 19.0 | 18.0 | 10.0 | 15.0 | 25.0 | 22.0 | 11.5 | 21.0 | ||||
| .47 | 20.0 | 21.0 | 11.0 | 21.0 | 30.0 | 24.0 | 13.0 | 26.0 | ||||
1. OPERATING TEMPERATURE : -40 ℃~ +85℃
2. DIELECTRIC STRENGTH : 150% of rated voltage for 1 minute at 25℃
3. DISSIPATION FACTOR : 0.8% MAX. at 1KHz, 25℃
4. INSULATION RESISTANCE :
≧20,000 MΩ ( C≦.1μF )
≧2,000 MΩ*C ( C＞.1μF )
2. DIELECTRIC STRENGTH : 150% of rated voltage for 1 minute at 25℃
3. DISSIPATION FACTOR : 0.8% MAX. at 1KHz, 25℃
4. INSULATION RESISTANCE :
≧20,000 MΩ ( C≦.1μF )
≧2,000 MΩ*C ( C＞.1μF )
1. 稳定性高
2. 耐电压冲击性较佳
3. 损失角低且容量较低, 高频特性良好, 可适用于中低频谐振电路工作
2. 耐电压冲击性较佳
3. 损失角低且容量较低, 高频特性良好, 可适用于中低频谐振电路工作
