金属化聚丙烯膜电容器

型号 : MPP

数量 :

加入询价车

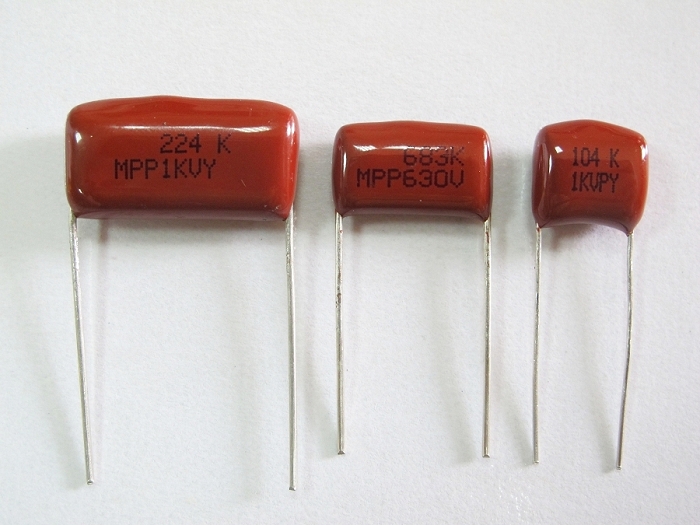

METALLIZED POLYPROPYLENE FILM CAPACITOR (MPP)
金属化聚丙烯膜电容器

适合使用于SPS、Monitor、高频式电子安定器等…

MPP TYPE:
RV 100VDC 250VDC 400VDC 630VDC
SIZE W H T P±1 W H T P±1 W H T P±1 W H T P±1
CAP
.001 13 8 6 10 0.6 13 8 6 10 0.6 13 8 6 10 0.6
.0105 13 8 6 10 0.6 13 8 6 10 0.6 13 8 6 10 0.6
.0022 13 9 6 10 0.6 13 9 6 10 0.6 13 9 6 10 0.6
.0033 13 9 6 10 0.6 13 9 6 10 0.6 13 9 6 10 0.6
.0047 13 9 6 10 0.6 13 10 6 10 0.6 13 10 6 10 0.6
.0068 13 9 6 10 0.6 13 10 6 10 0.6 13 10 7 10 0.6
.01 13 10 6 10 0.6 13 10 6 10 0.6 18 10 7 15 0.6
.015 13 10 6 10 0.6 13 10 6 10 0.6 18 10 7 15 0.6
.022 13 10 7 10 0.6 13 10 7 10 0.6 18 10 7 15 0.6
.033 13 10 7 10 0.6 18 12 7 15 0.6 18 12.5 8 15 0.6
.047 13 8.5 5 10 0.6 13 10 7 10 0.6 18 13 7.5 15 0.6 18 14.5 9 15 0.6
.068 13 10 6 10 0.6 18 12.5 7 15 0.6 18 12.5 7 15 0.8 24 14.5 9 20 0.8
.1 13 10 6 10 0.6 18 12.5 7 15 0.8 18 13.5 8 15 8 24 14.5 10 20 0.8
.15 18 12 7 15 0.8 18 12.5 7.5 15 0.8 24 14.5 8 20 0.8 24 17.5 11.5 20 0.8
.22 18 12 7 15 0.8 18 14.5 9 15 0.8 24 14.5 9 20 0.8 32 20 11.5 27.5 0.8
.33 18 14 7 15 0.8 24 15.5 9 20 0.8 24 19 11 20 0.8 32 22 13.5 27.5 0.8
.47 18 14 8 15 0.8 24 15.5 10 20 0.8 32 20 11 27.5 0.8 32 25 15.5 27.5 0.8
.68 18 15.5 10 15 0.8 24 17.5 11.5 20 0.8 32 20 11.5 27.5 0.8 32 29 18.5 27.5 0.8
1.0 24 16 10 20 0.8 32 20 11.5 27.5 0.8 32 25 15.5 27.5 0.8
1.5 24 17.5 12 20 0.8 32 22.5 13.5 27.5 0.8
2.2 32 20 12 27.5 0.8 32 26 16.5 27.5 0.8
3.3 32 23 12 27.5 0.8



1. OPERATING TEMPERATURE : -55℃ ~ +105℃
2. DIELECTRIC STRENGTH : 150% of rated voltage for 1 minute at 25℃
3. DISSIPATION FACTOR : 0.1% MAX. at 1KHz, 25℃
4. INSULATION RESISTANCE :
    ≧30,000 MΩ ( C≦.33μF )
    ≧10,000 MΩ*C ( C>.33μF )
1. DF值小,常使用于震荡电路(如补振电路),高频时需注意DF值变化
2. 耐电压冲击性较佳
3. 采用金属化膜材料,具有自复性
