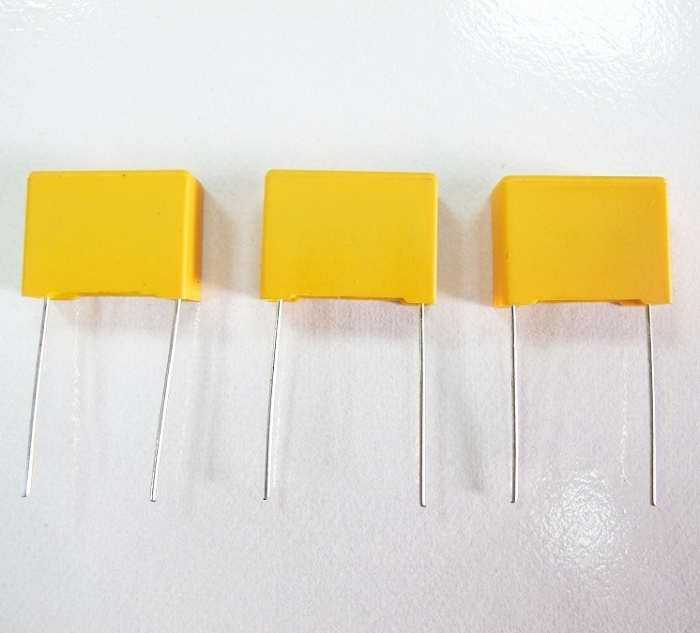

金属化聚丙烯膜电容器

型号 : MPH

数量 :

加入询价车

METALLIZED POLYPROPYLENE FILM CAPACITOR (MPH) - For High voltage capacitor to light up

金属化聚丙烯膜电容器(高电压专用)

适合使用于电源跨接处


DIMENSION:
CAPACITANCE 3A(1000VDC~1250VDC) 3B(1600VDC) 3C(2000VDC)
µF CASE
CODE
W H T P d W H T P d W H T P d
0.0022 C3 13 12 6 10 0.6 13 12 6 10 0.6 13 12 6 10 0.6
0.0022 D1 18 11 5 15 0.6 18 11 5 15 0.6 18 11 5 15 0.6
0.0033 C3 13 12 6 10 0.6 13 12 6 10 0.6 13 12 6 10 0.6
0.0033 D1 18 11 5 15 0.6 18 11 5 15 0.6 18 11 5 15 0.6
0.0039 C3 13 12 6 10 0.6 13 12 6 10 0.6 13 12 6 10 0.6
0.0039 D1 18 11 5 15 0.6 18 11 5 15 0.6 18 11 5 15 0.6
0.0047 C3 13 12 6 10 0.6 13 12 6 10 0.6 13 12 6 10 0.6
0.0047 D2 18 12 6 15 0.6 18 12 6 15 0.6 18 12 6 15 0.6
0.0056 C3 13 12 6 10 0.6 13 12 6 10 0.6 13 12 6 10 0.6
0.0056 D2 18 12 6 15 0.6 18 12 6 15 0.6 18 12 6 15 0.6
0.0068 D3 18 13.5 7.5 15 0.6 18 13.5 7.5 15 0.6 18 13.5 7.5 15 0.6
0.01 D4 18 14.5 8.5 15 0.6 18 14.5 8.5 15 0.6 18 14.5 8.5 15 0.6
0.015 D5 18 17 10 15 0.6 18 17 10 15 0.6 18 17 10 15 0.6
0.05 E1 26.5 15 6 20.5 0.8 26.5 15 6 20.5 0.8 26.5 15 6 20.5 0.8
0.22 E4 26.5 19 10 20.5 0.8 26.5 19 10 20.5 0.8 26.5 19 10 20.5 0.8


  • OPERATING TEMPERATURE:-40°C~ + 85°C
  • CAPACITANCE RANGE:0.0022-0.1MFD.
  • CAPACITANCE TOLERANCE±5%(J), ± 10%(K)
  • RATED VOLTAGE:1,000~2000VDC.
  • DISSIPATION FACTOR: 0.15%MAX AT 20KHz,25°C
  • VOLTAGE PROOF:5,000VDC 1Sec(20℃)
  • INSULATION RESISTANCE:
    • >30,000MΩ (C≦0.33uF)
    • >10,000MΩ/ μF(C>0.33uF) AT25℃
  • ENDURANCE:
    • THE TEST VOLTAGE 2,500VAC SHALL BE APPLIED FOR 1000HOURS IN THE85℃CHAMBER. DURING THIS PERIOD, 1000VAC 20KHZ FOR A PERIOD OF 0.1SEC BE APPLIED ONCE EACH HOUR. AFTER THE TEST. ΔC/C≦10%, ΔDF≦0.15%, ΔIR≧50% OF THE SPECIFIED VALUE.
  • 采用METALLIZED POLYPROPYLENE材质
  • DF值小,常使用于震荡电路(如补振电路),高频时需注意DF值变化
  • 具有安全保护作用,在较大脉波冲击时,会造成OPEN的现象且不会爆裂、自燃等危险伤害;可保护其他组件或零件
  • 一边使用于电源跨接处,可消除AC电源之交流声及防止大脉波之流入
